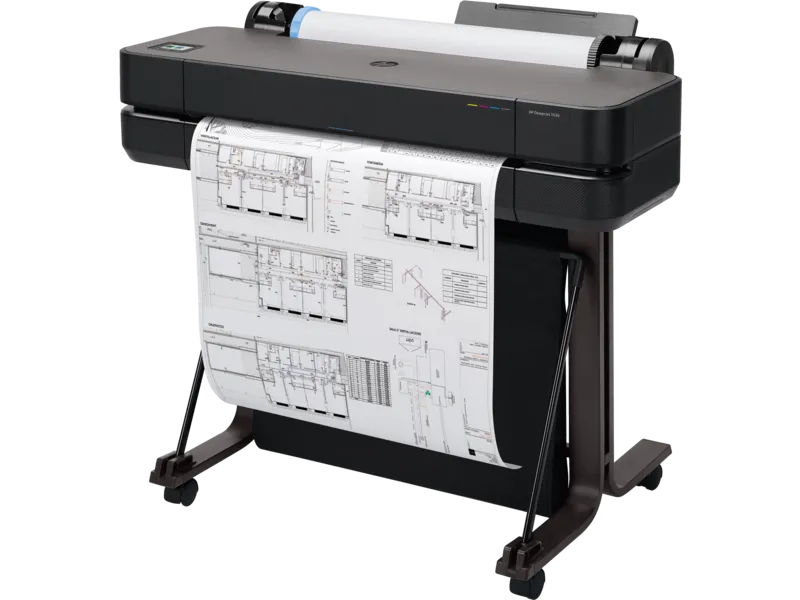

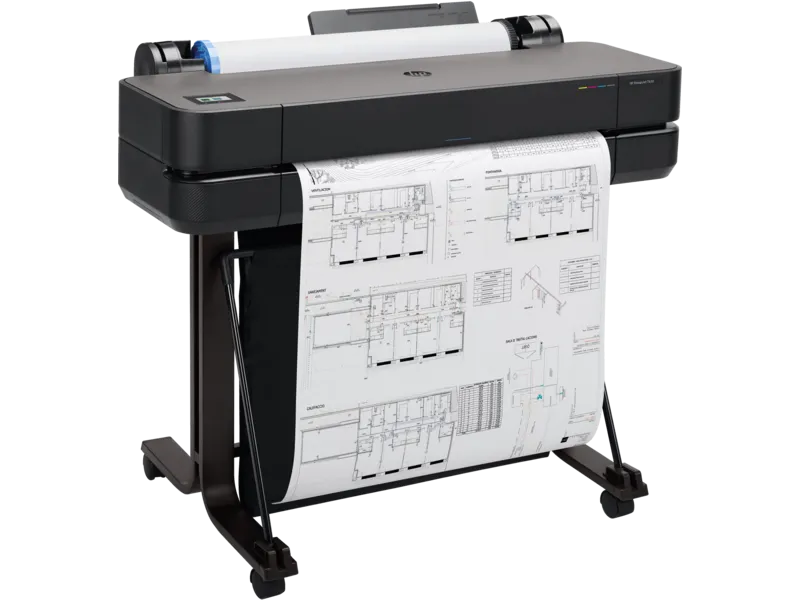

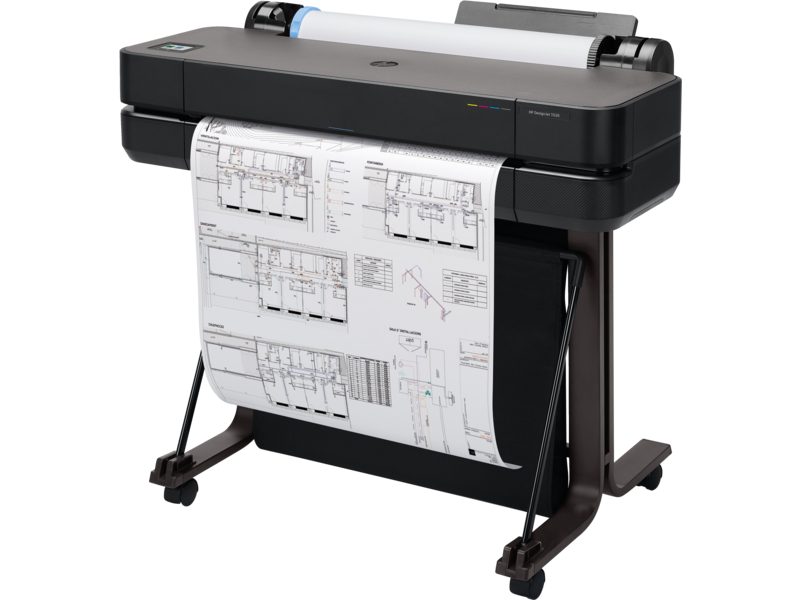

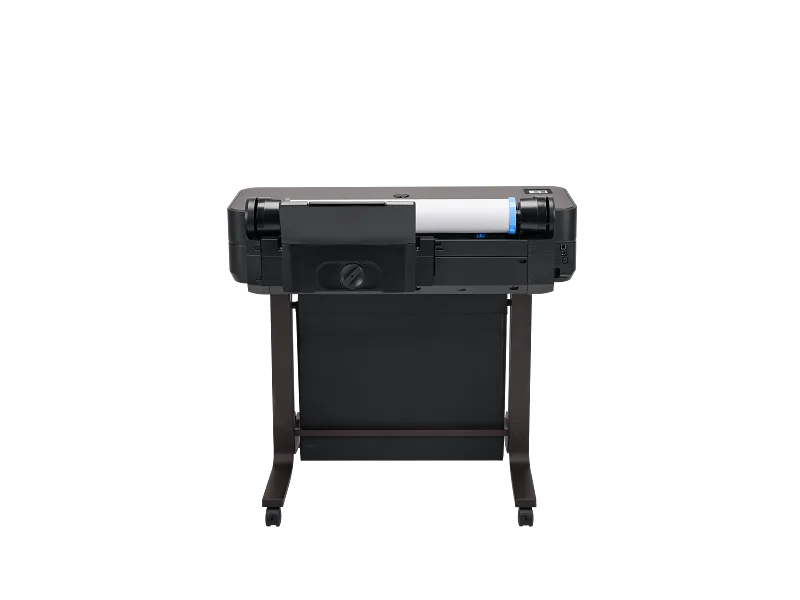

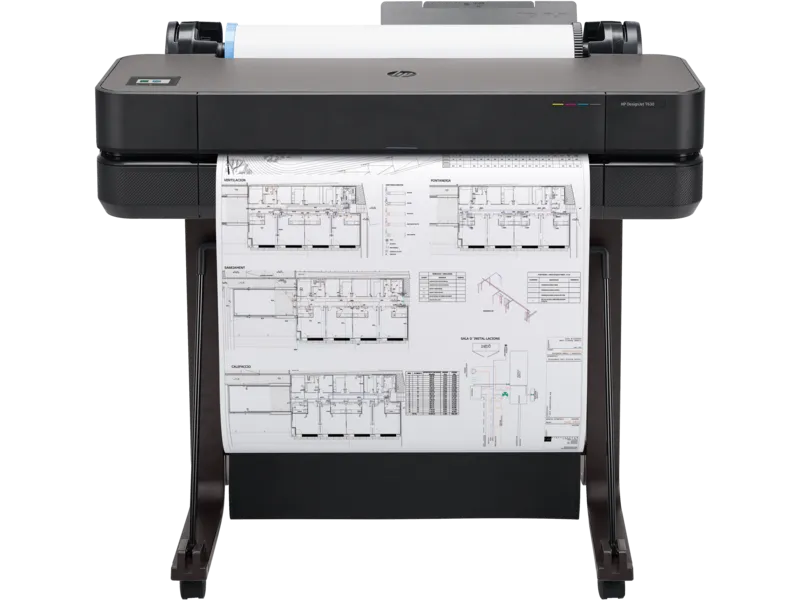

Description: HP DesignJet T630 24-in Large Format Thermal Inkjet Printer (5HB09A), Wi-Fi, Ethernet, USB, 1GB Memory, Automatic Sheet Feeder, 2400 x 1200 dpi-
- The HP DesignJet T630 24-in Printer (5HB09A) is a large-format thermal inkjet printer delivering fast, high-resolution printing with versatile media support, remote connectivity, and professional-grade performance for technical and presentation printing needs.
Specifications
| General Information | Detailed Information |
|---|---|
| Functions | |
| Print Speed | 30 sec/page on A1, 76 A1 prints per hour |
| Ink Drop | 5.5 pl (C, M, Y); 12 pl (K) |
| Print Head Nozzles | 1376 |
| Print Cartridge/Bottle Volume | 80 ml (K); 38 ml (K); 29 ml (C, M, Y) |
| Ink Types | Dye-based (C, M, Y); Pigment-based (K) |
| Number of Cartridges | 4 (C, M, Y, K) |
| Print Heads | 1 (cyan, magenta, yellow, black) |
| Page Yield Capacity | 20 ml ink yields 101 A1 pages |
| Cartridge Colours | Cyan, Magenta, Yellow, Black |
| Print Quality | Up to 2400 x 1200 optimised dpi |
| Maximum Optical Density | 8 L* min/2.10 D |
| Finished Output Handling | Sheet feed, Roll feed, Automatic sheet feeder, Media bin, Automatic horizontal cutter |
| Standard Media Sizes (Rolls) | 279 to 610 mm |
| Roll External Diameter | 100 mm |
| Maximum Roll Input | 1 |
| Maximum Roll Weight | 4.1 kg |
| Recommended Media | HP Universal Bond Paper, HP Coated Paper, HP Heavyweight Coated Paper |
| Media Thickness | Up to 11.8 mil / 0.3 mm |
| Maximum Media Width | 610 mm |
| Supported Applications | Line Drawings, Presentations, Renderings |
| Non-Printable Area (Cut Sheet) | 5 x 5 x 5 x 17 mm (manual), 5 x 5 x 5 x 5 mm (input tray) |
| Non-Printable Area (Roll Media) | 5 x 5 x 5 x 5 mm |
| Custom Media Sizes | Auto sheet feeder: 210 x 279 to 330 x 482 mm; Manual feed: 210 x 279 to 610 x 1897 mm |
| Supported Media Sizes | Auto sheet feeder: A4, A3; Manual feed: A4, A3, A2, A1 |
| Media Types | Bond, coated, heavyweight coated, plain, bright white, blueprint, tracing paper, film, photographic paper, self-adhesive |
| Recommended Media Weight | 60 to 280 g/m² (roll/manual), 60 to 220 g/m² (auto sheet feeder) |
| Model Size | 610 mm |
| Internal Storage | None |
| Line Accuracy | ±0.1% |
| Printer Drivers | Raster driver for Windows and macOS; HP Click Driver for Windows 11 |
| Print Languages | HP-GL/2, HP-RTL, CALS G4, JPEG, URF |
| Print Technology | HP Thermal Inkjet |
| Minimum Line Width | 0.02 mm |
| Printing Path | HP Smart App, HP Click App, HP Click Driver, macOS Driver, Windows Driver, Chrome OS Support, Email Printing, Android Plugin, Apple AirPrint |
| Connectivity | Gigabit Ethernet, Hi-Speed USB 2.0, Wi-Fi, Wi-Fi Direct |
| Remote Print | Yes |
| Multi-Size File Printing | Yes |
| Dimensions (W x D x H) | 1013 x 605 x 932 mm |
| Package Dimensions | 1155 x 575 x 475 mm |
| Weight | 28.9 kg |
| Package Weight | 37.4 kg |
| Memory | 1 GB |
| Acoustic Power Emissions | 5.8 B(A) operating, <3.4 B(A) idle |
| Acoustic Pressure Emissions | 42 dB(A) operating, <16 dB(A) idle |
| Operating Humidity | 20 to 80% RH |
| Non-Operating Humidity | 0 to 95% RH |
| Operating Temperature | 5 to 40ºC (41 to 104ºF) |
| Storage Temperature | -25 to 55ºC (-13 to 131ºF) |
| Operating Altitude | Up to 3000 m |
| Recycled Plastic Content | 30% |
| Power Requirements | 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
| Software Included | HP Click App, HP Click Driver, HP Smart App, HP Print Preview, HP Easy Start, HP DesignJet Utility, HP Support Assistant |
| Electromagnetic Compatibility | FCC, ICES, EMC/RED, ACMA, RSM, CCC, VCCI, KCC |
| Energy Certification | ENERGY STAR Certified |
| Environmental Certification | ENERGY STAR, WEEE, EU RoHS, EAEU RoHS, REACH, ErP, EPEAT Gold |
| Safety Certification | CSA, LVD, EN 60950-1, EN 62368-1, EAC, PSB, CCC, IRAM, BIS, NYCE |
| Manufacturer Warranty | One-Year Limited Hardware Warranty |
