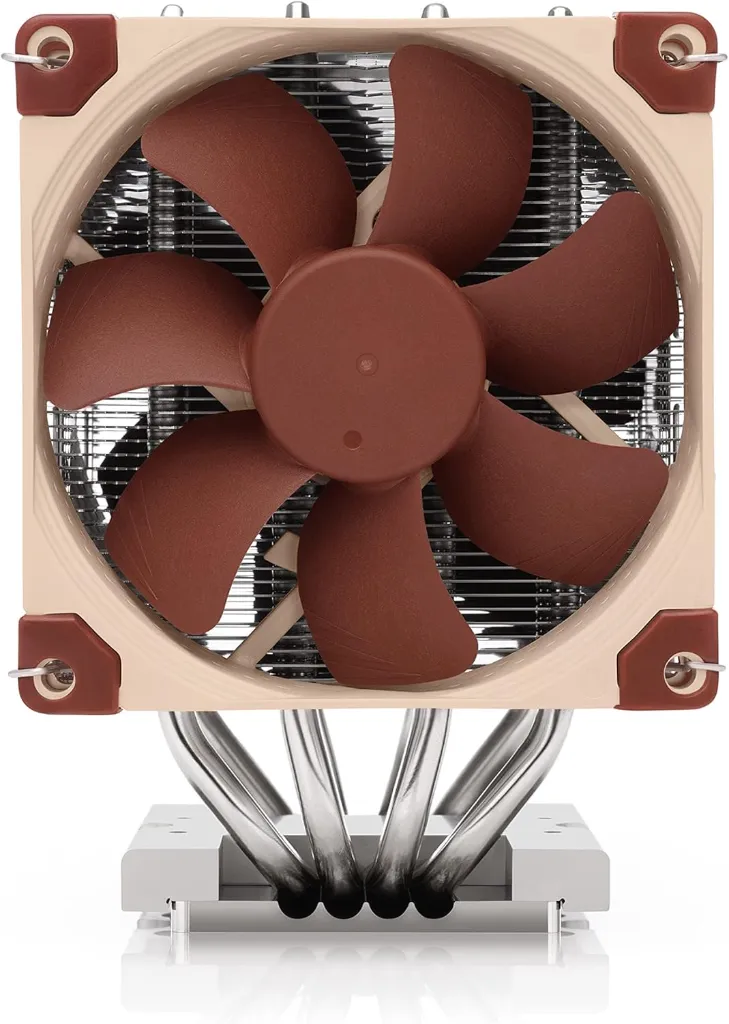

Description for Noctua NH-D9 DX-4677 4U Premium Quality Heat Sink for Intel Xeon LGA4677 (Brown)
- The Noctua NH-D9 DX-4677 is a 4U-compatible premium heat sink for Intel Xeon LGA4677 platforms, featuring dual 92mm PWM fans, robust nickel-plated construction, and enterprise-grade cooling performance with a 6-year warranty.
- The Noctua NH-D9 DX-4677 is a 4U-compatible premium heat sink for Intel Xeon LGA4677 platforms, featuring dual 92mm PWM fans, robust nickel-plated construction, and enterprise-grade cooling performance with a 6-year warranty.
Specifications
| General Information | Detailed Information |
|---|---|
| Socket Compatibility | LGA4677, LGA4710 |
| Total Height | 134 mm |
| Fan Configuration | 2 x 92 x 92 x 25 mm |
| Fan Model | NF-A9 HS-PWM |
| Speed Range | 0 – 2500 rpm |
| Maximum Airflow | 96.3 m³/h (56.68 CFM) |
| Maximum Noise Level | 30.6 dB(A) |
| Static Pressure | 3.26 mm H₂O |
| Rated Voltage | 12 V |
| Connector | 4-pin |
| Width with Fans | 95 mm |
| Depth with Fans | 120 mm |
| Weight without Fans | 584 g |

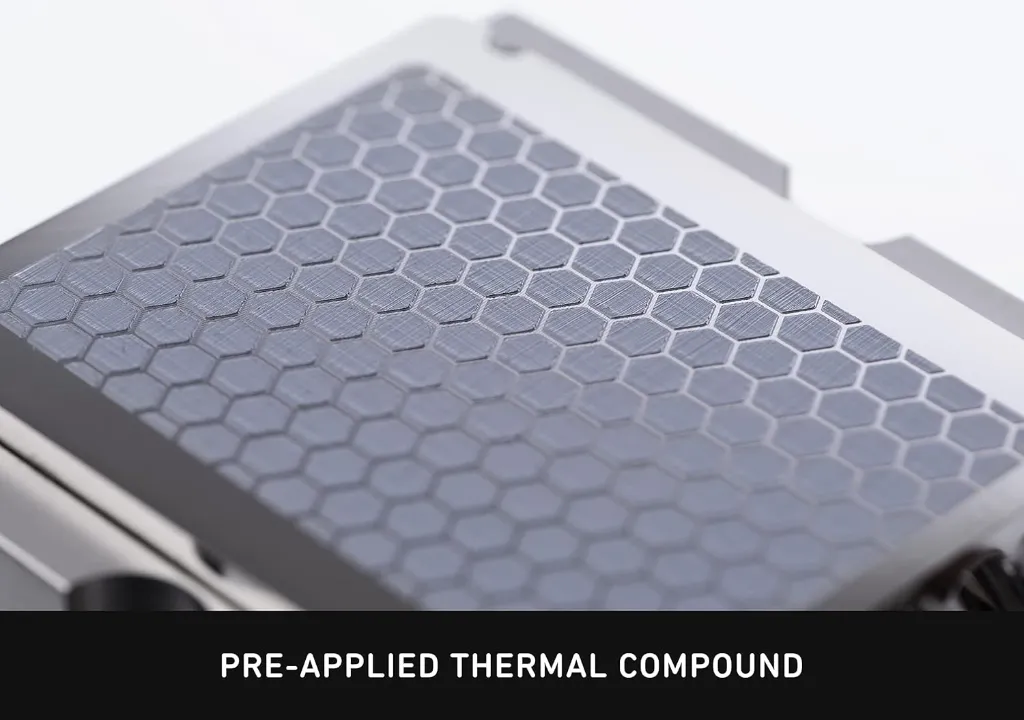

| Heatsink Base Material | Copper, nickel plated |
| Heatsink Fin Material | Aluminium, nickel plated |
| Heatpipe Material | Copper, nickel plated |
| Number of Heatpipes | 4 |
| Heatpipe Diameter | 6 mm |
| Fin Count | 47 |
| Rack Unit Compatibility | 4U, 5U |
| Base Size | 56 x 70 mm |
| NSPR Rating | 134 |
| Packaging Dimensions | 195 x 160 x 160 mm |
| Packaging Weight | 1246 g |
| EAN | 9010018000375 |
| UPC | 841501100376 |
