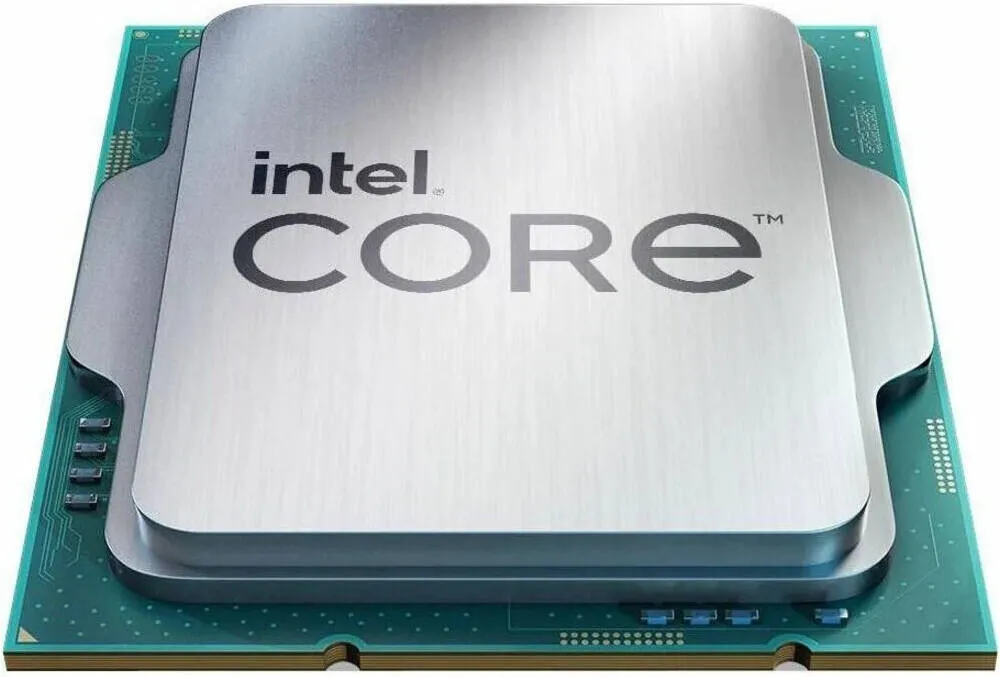

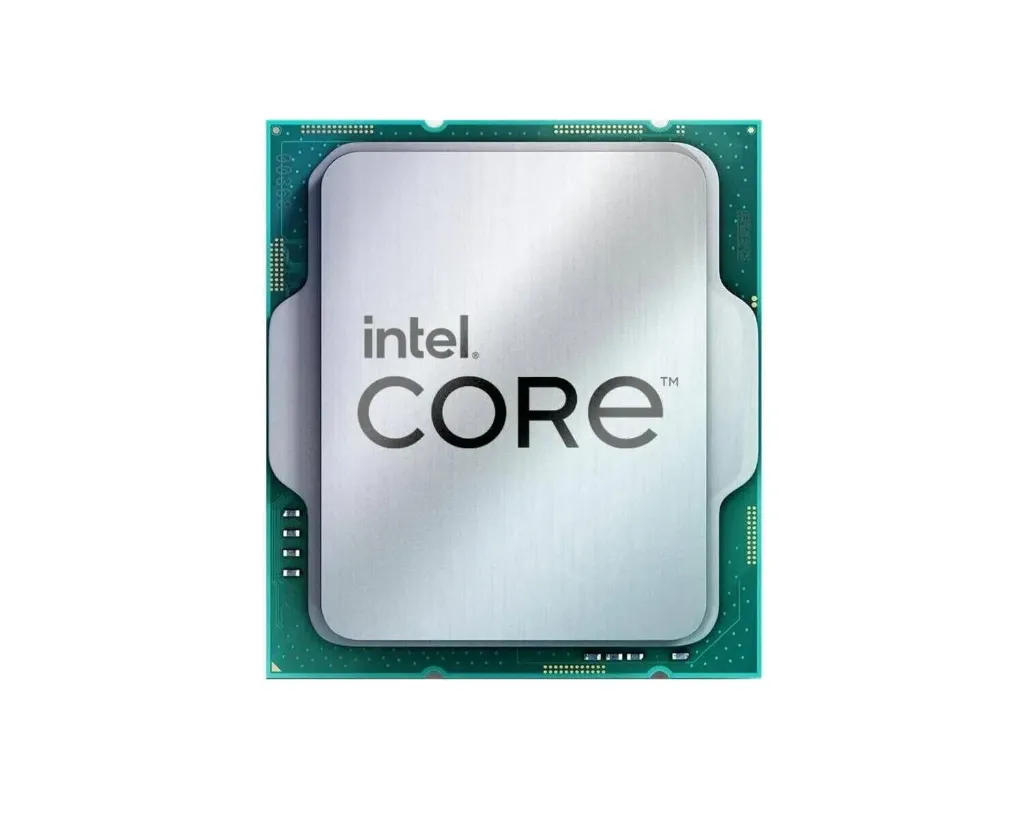

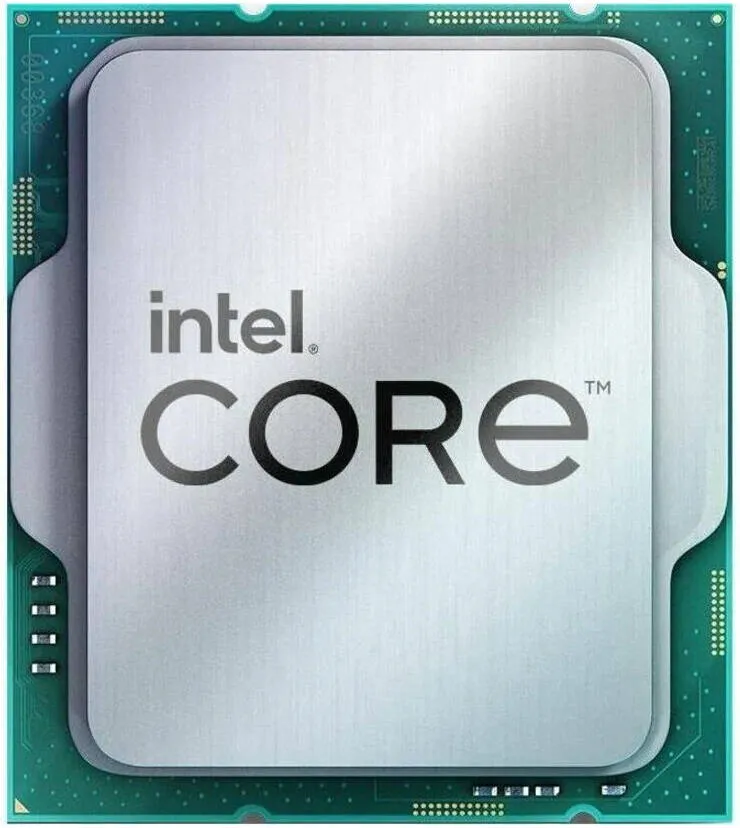

Description: Intel Core i7-14700F 2.1GHz LGA 1700 Desktop Processor | 20 Cores & 28 Threads 33MB Cache | Dual-Channel DDR5-5600 ECC Memory | i7-14700F-TRAY
- Intel Core i7-14700F 2.1GHz 20-core, 28-thread LGA 1700 processor with 5.4 GHz turbo, 33MB cache, hybrid cores, and DDR5-5600 ECC memory support up to 192 GB.
Specifications
| General | Detailed Info |
|---|---|
| CPU Model | Intel Core i7-14700F (14th Gen) |
| CPU Socket | LGA 1700 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum PCIe Lanes | 20 (Revision 5.0) |
| Unlocked | No |
| Number of Cores | 20 (8 P-Cores + 12 E-Cores) |
| Number of Threads | 28 |
| Base Clock Speed | P-Core: 2.1 GHz / E-Core: 1.5 GHz |
| Maximum Boost Speed | P-Core Turbo 3.0: 5.4 GHz / P-Core Turbo: 5.3 GHz / E-Core Turbo: 4.2 GHz |
| L3 Cache | 33 MB |
| Maximum Memory Capacity | 192 GB |
| Memory Support | DDR5 Up to 5600 MHz / DDR4 Up to 3200 MHz |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 89.6 GB/s |
| Thermal Design Power (TDP) | 65 W |
| Included Thermal Solution | Laminar RM1 |
| Maximum Temperature | 212°F / 100°C |
| AES Support | Yes |
| Instruction Set | 64-Bit |
| Virtualization | Intel VT-d, Intel VT-x, Intel VT-x with EPT |
| vPro Support | Yes |
| Extension | AVX 2.0, SSE 4.1/4.2 |
| DMI | DMI4 (16 GT/s) |
